Duratek axle Diagrams
Axle Diagrams

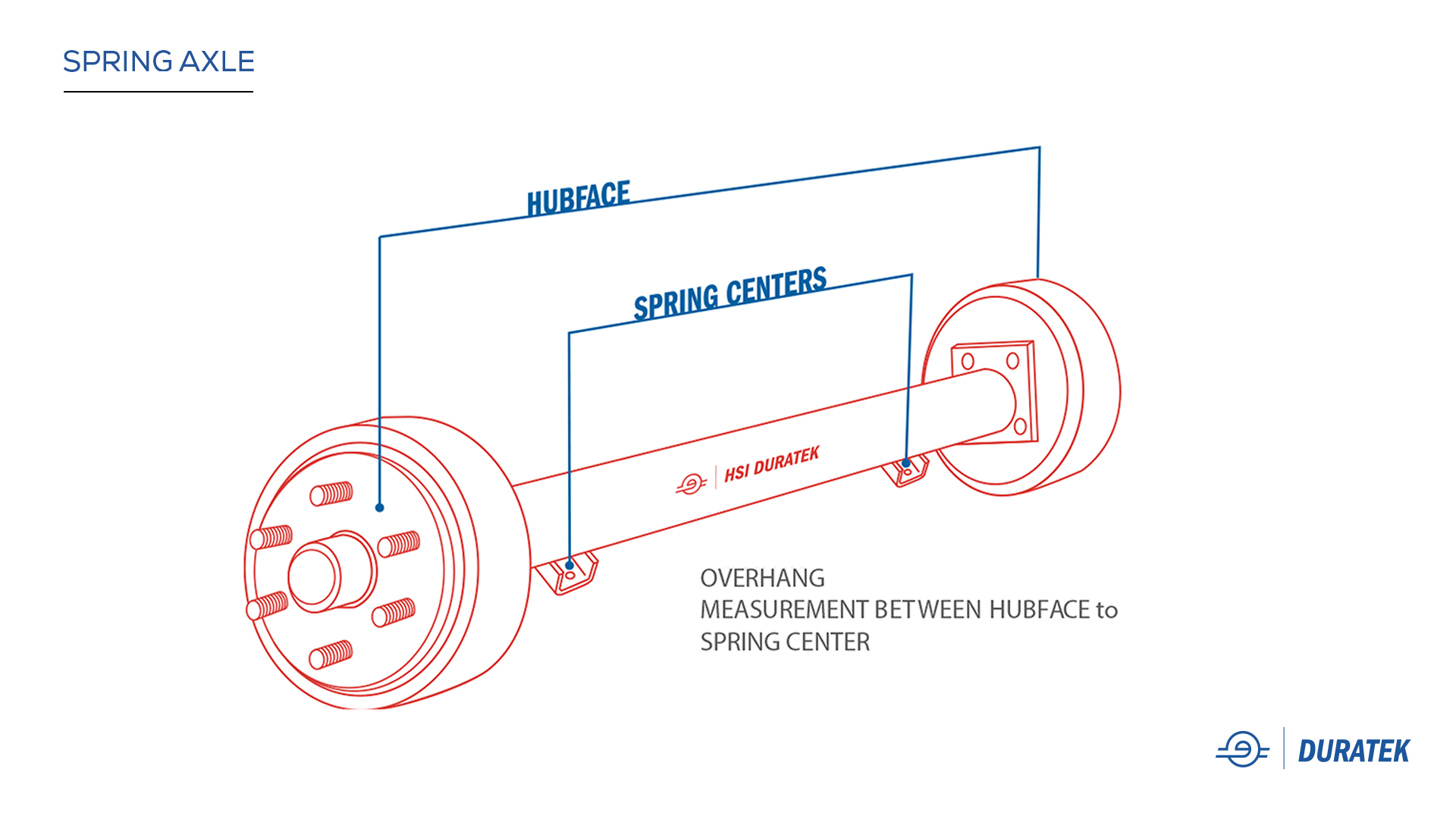

Spring Axle Diagram

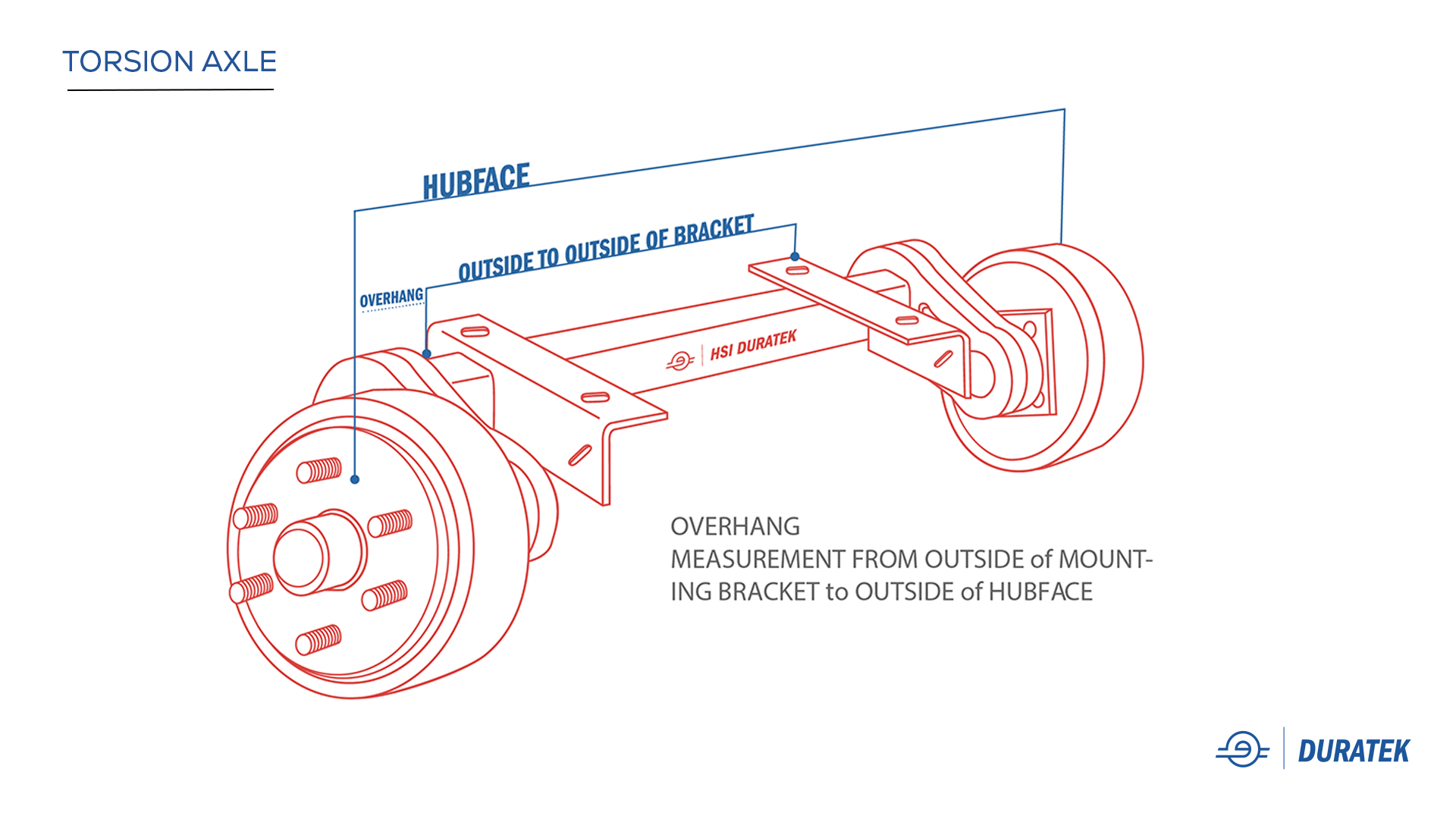

Torsion Axle Diagram

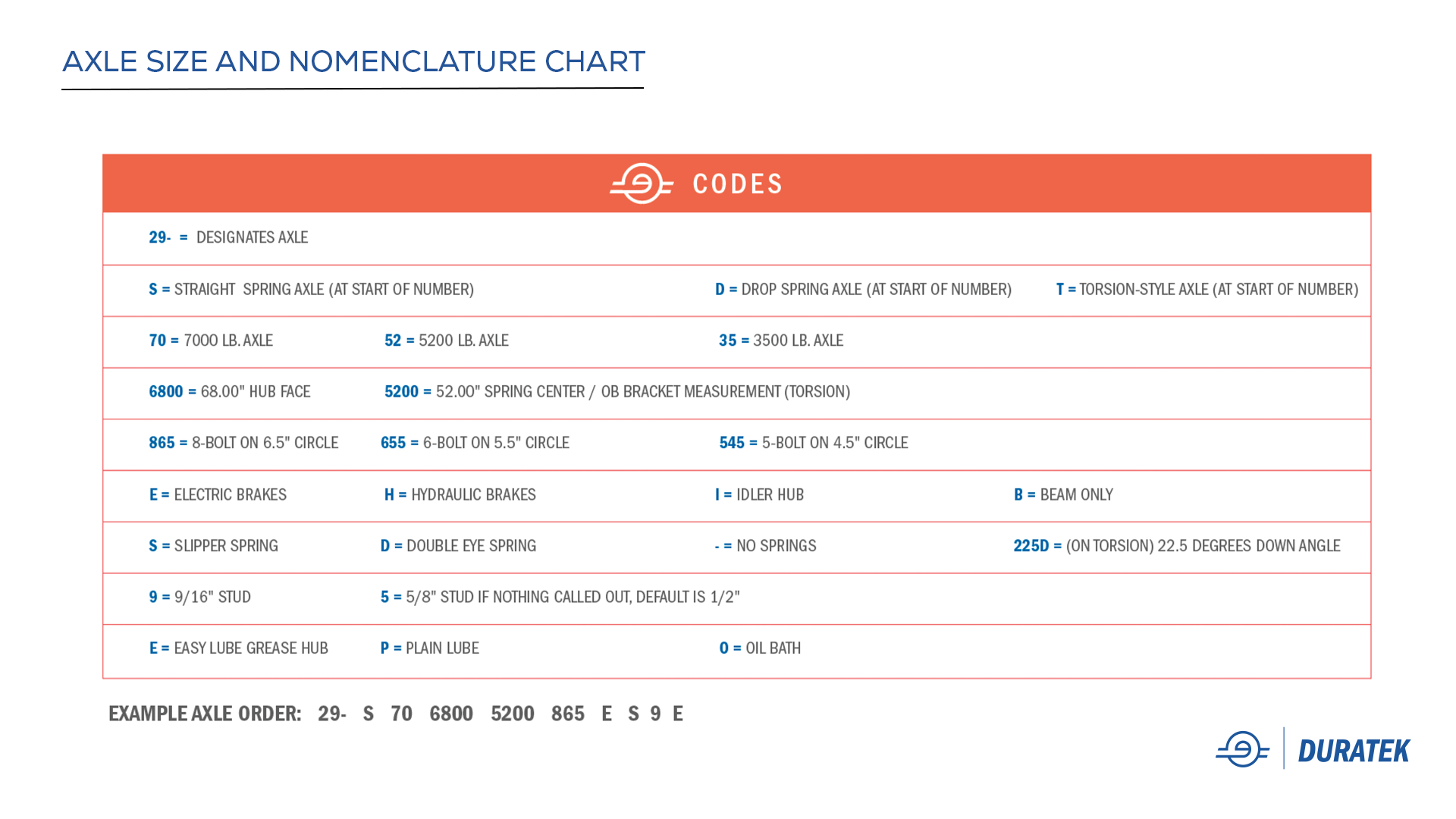

Axle Size and Nomenclature Chart

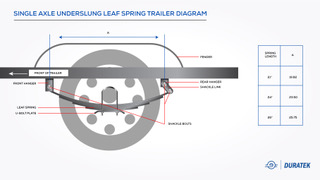

Single Axle Underslung Leaf Spring Trailer Diagram

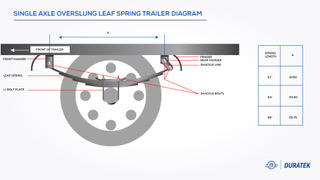

Single Axle Overslung Leaf Spring Trailer Diagram

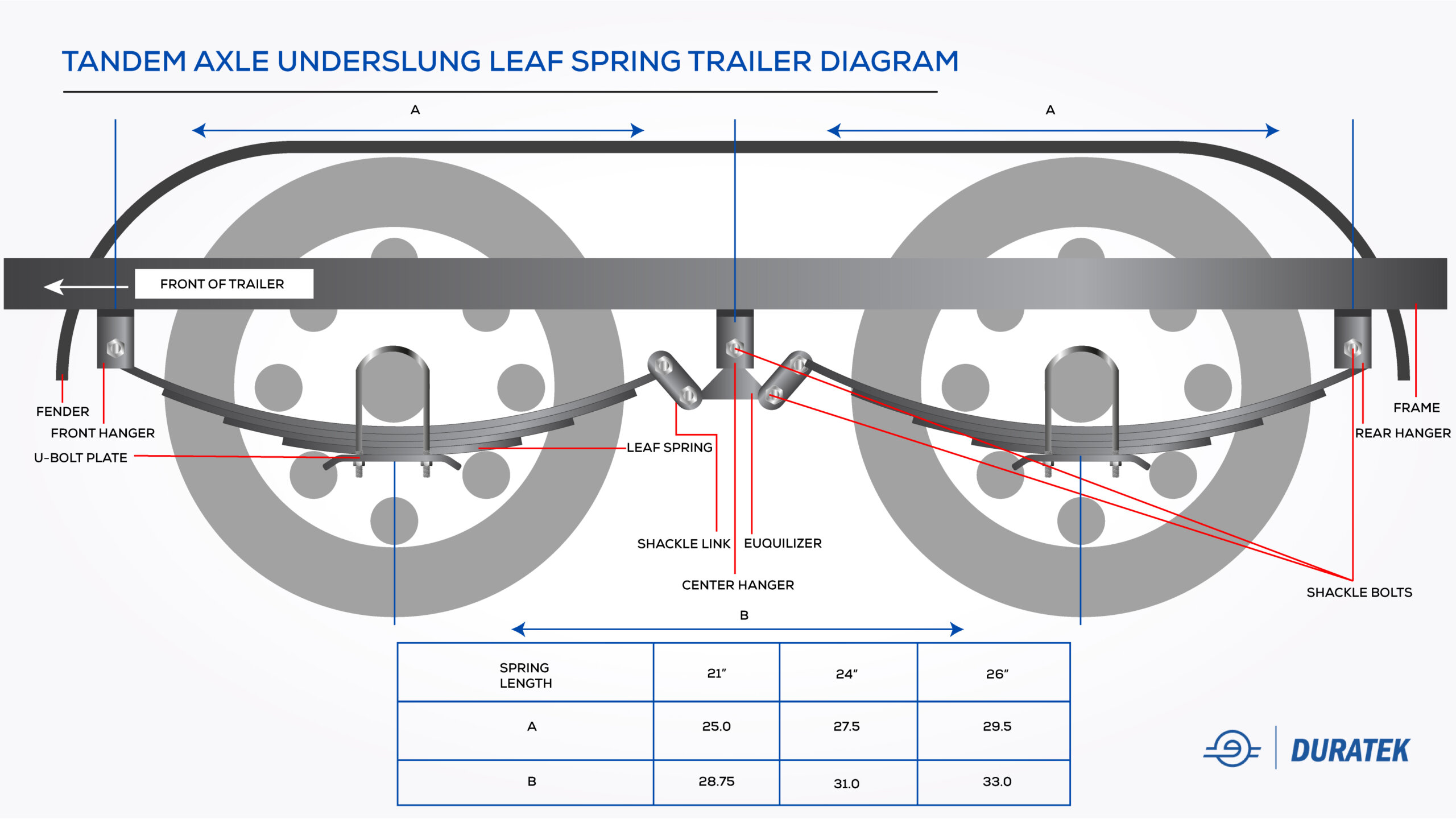

Tandem Axle Underslung Leaf Spring Tailer Diagram

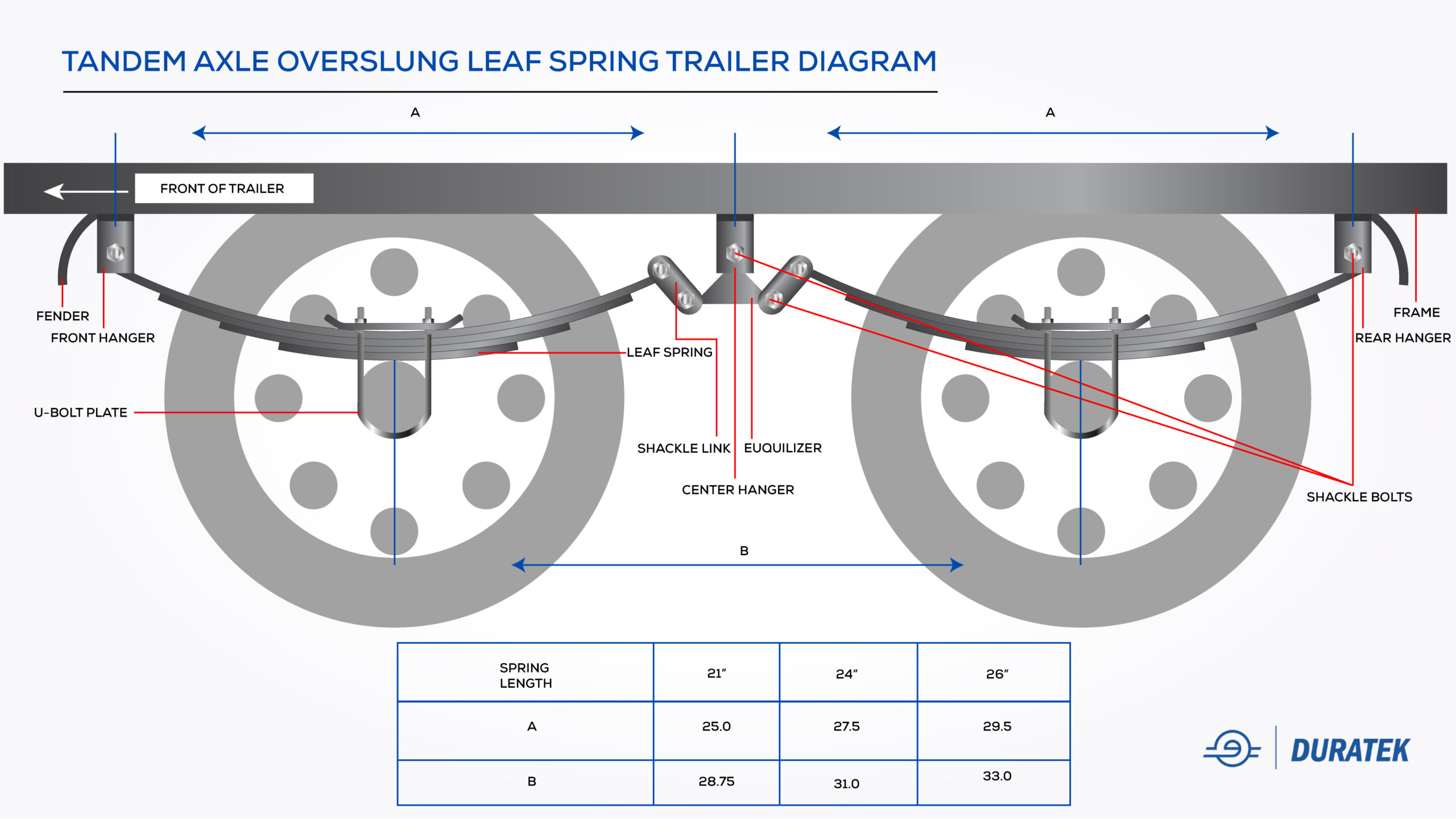

Tandem Axles Overslung Leaf Spring Trailer Diagram

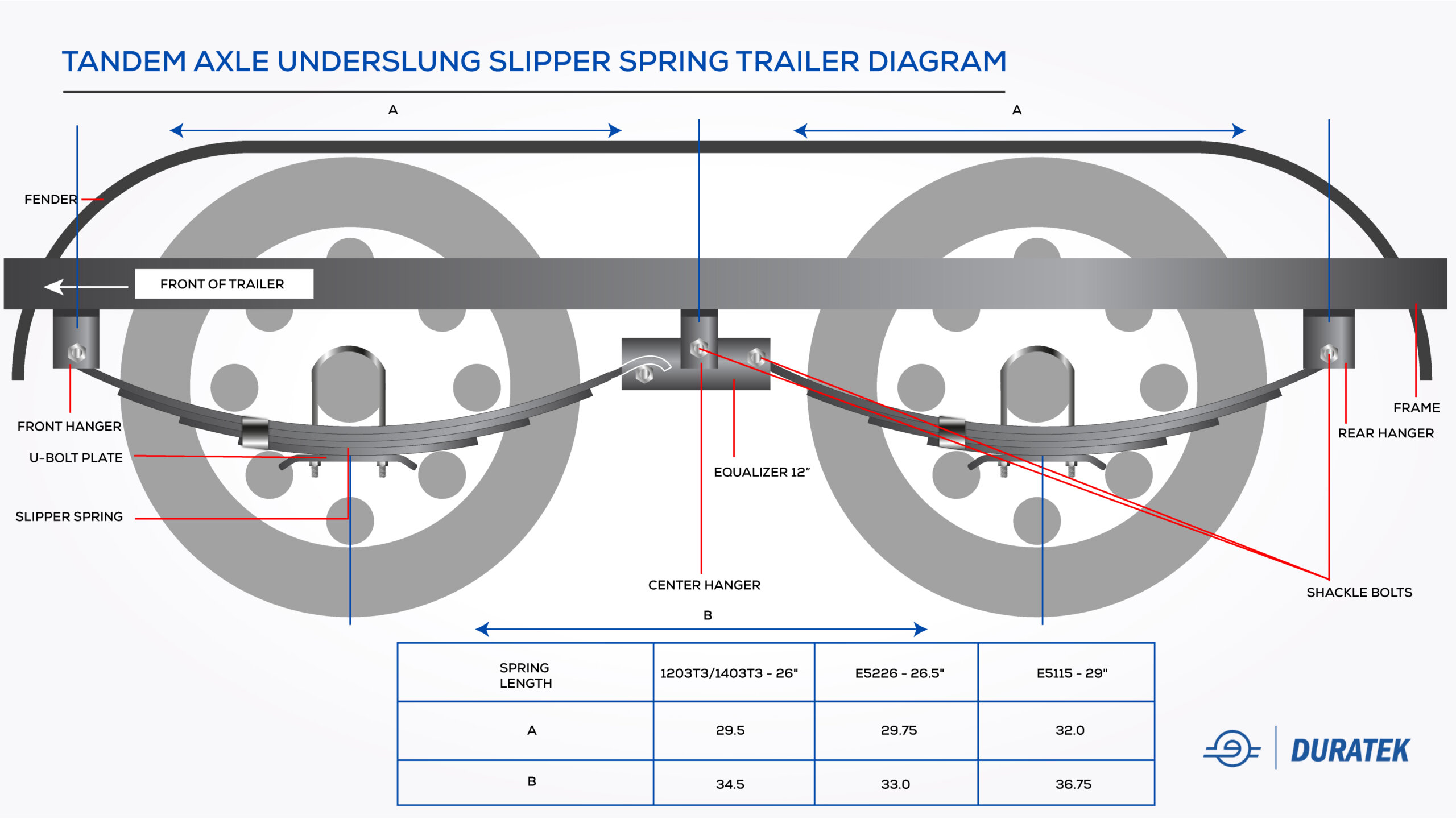

Tandem Axle Underslung Slipper Spring Trailer Diagram

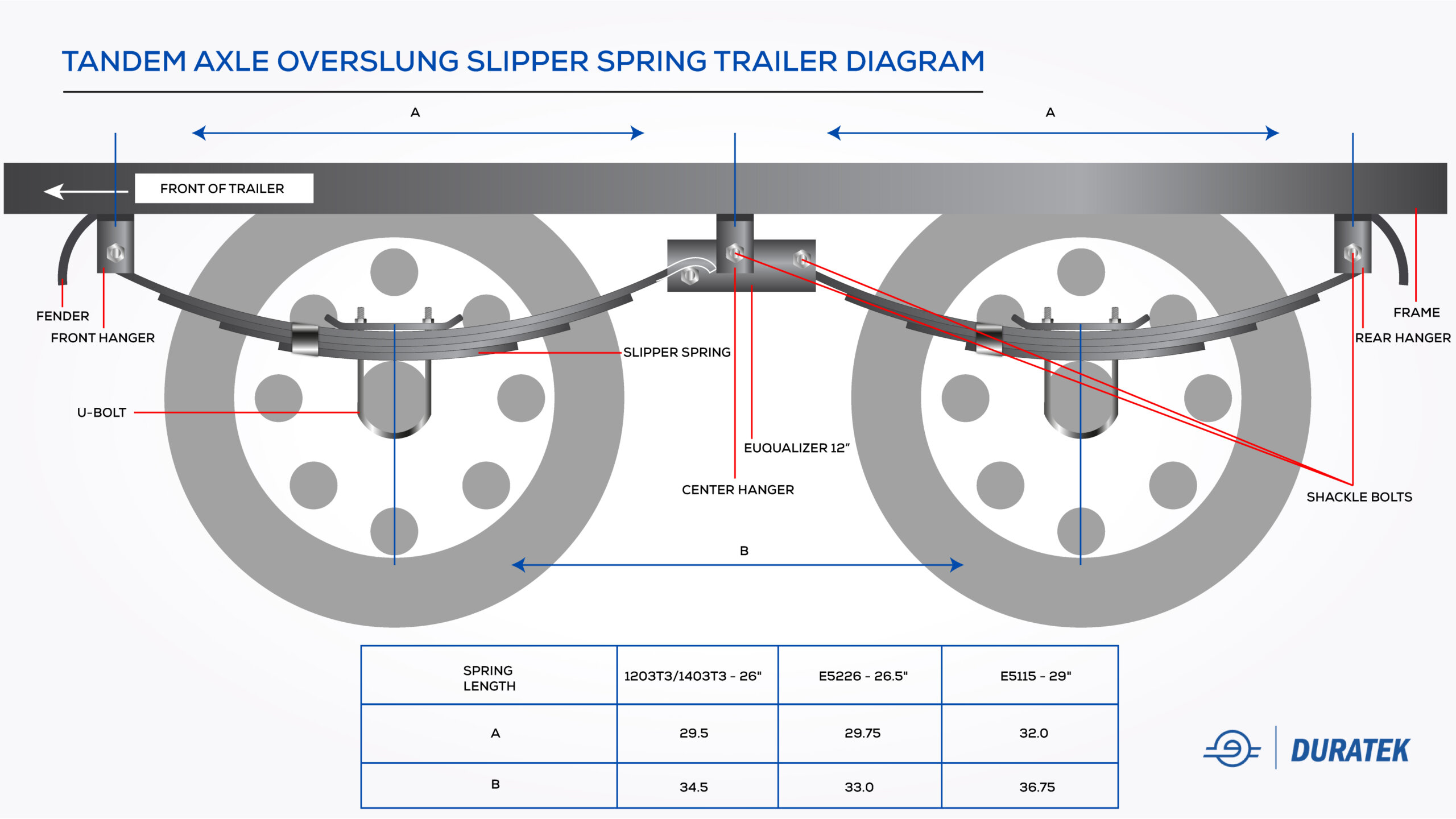

Tandem Axle Overslung Slipper Spring Trailer Diagram

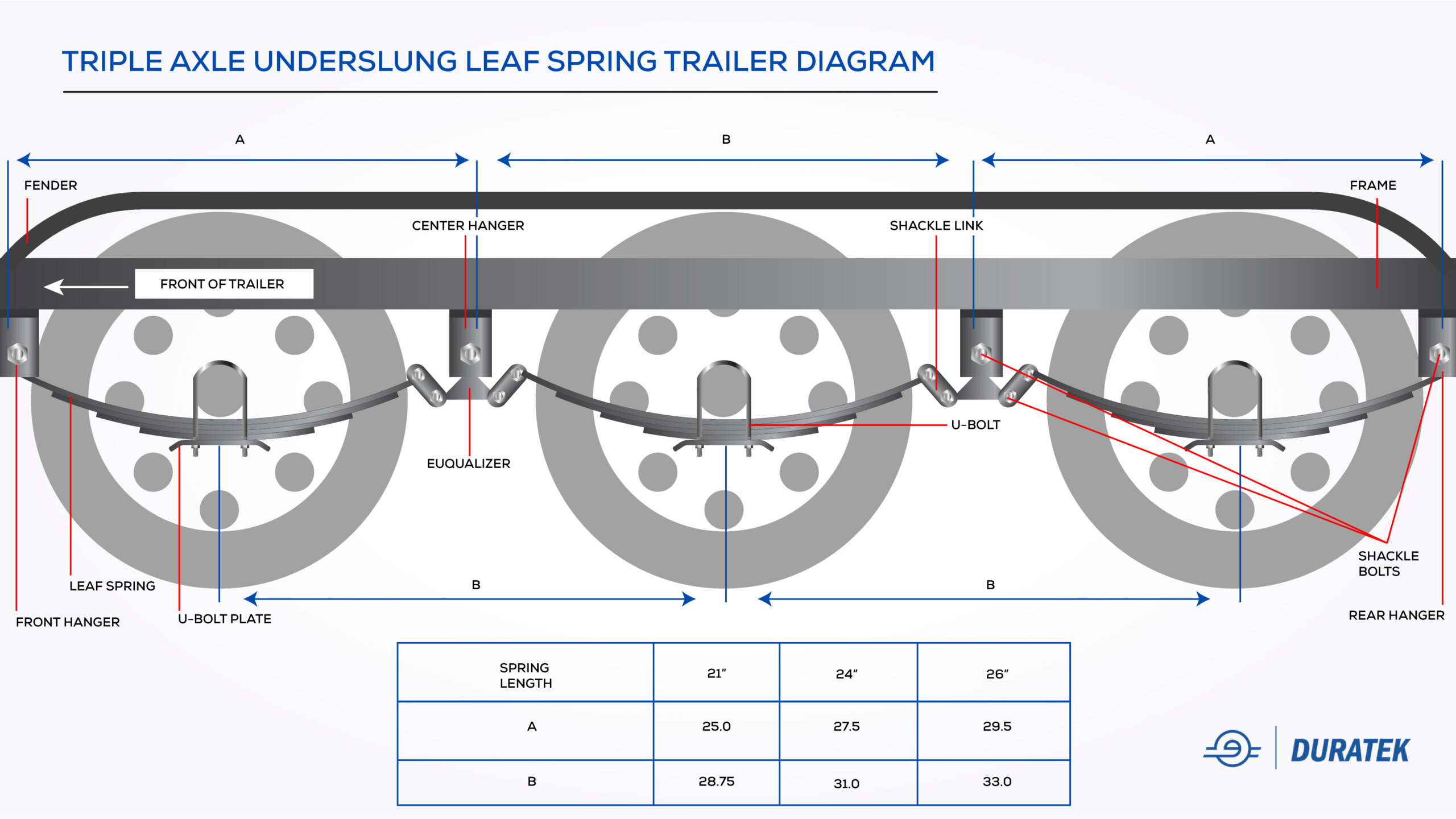

Triple Axle Underslung Leaf Spring Trailer Diagram

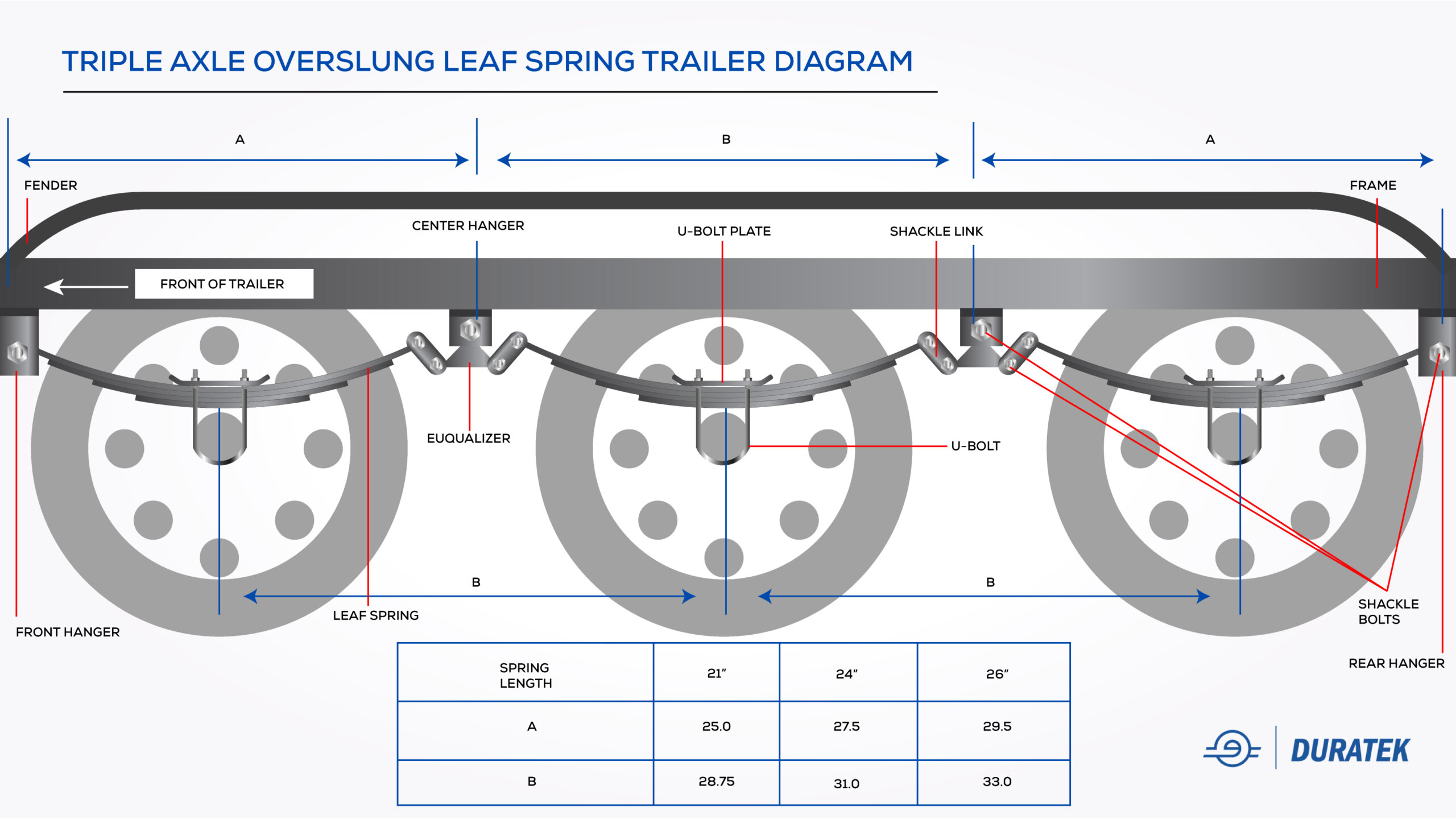

Triple Axle Overslung Leaf Spring Trailer Diagram

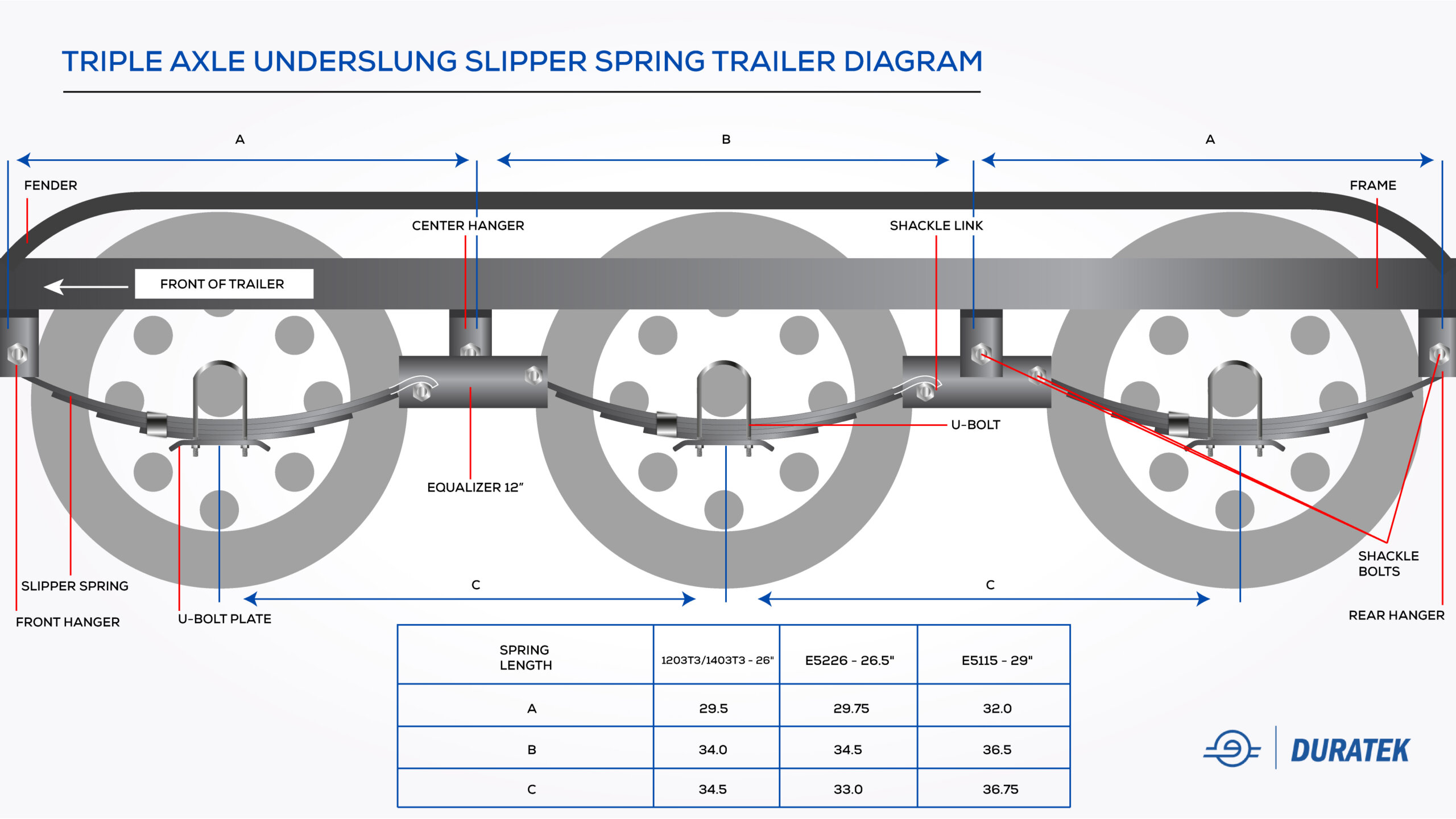

Triple Axle Underslung Slipper spring Trailer Diagram

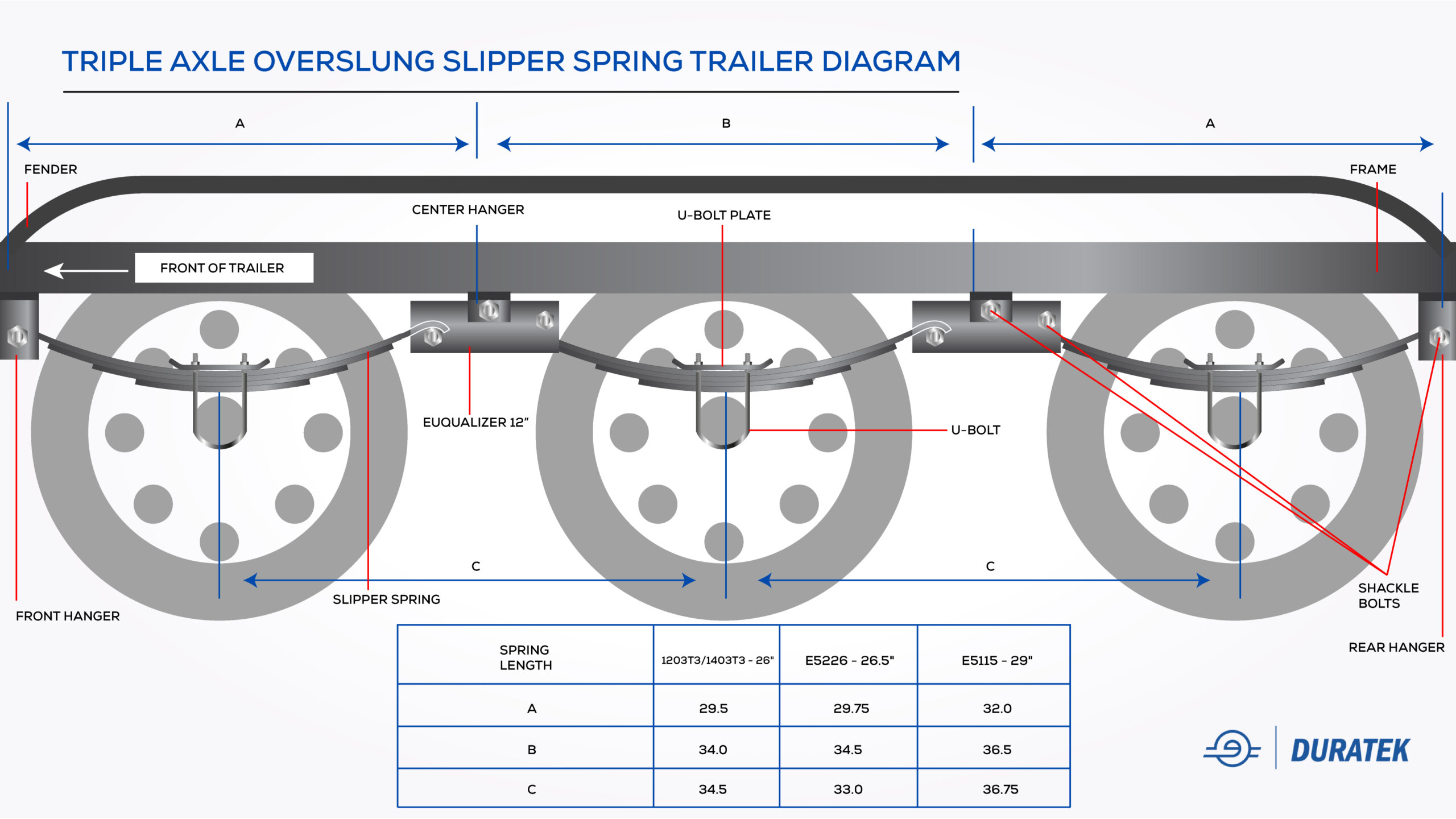

Triple Axle Overslung Slipper Spring Trailer Diagram

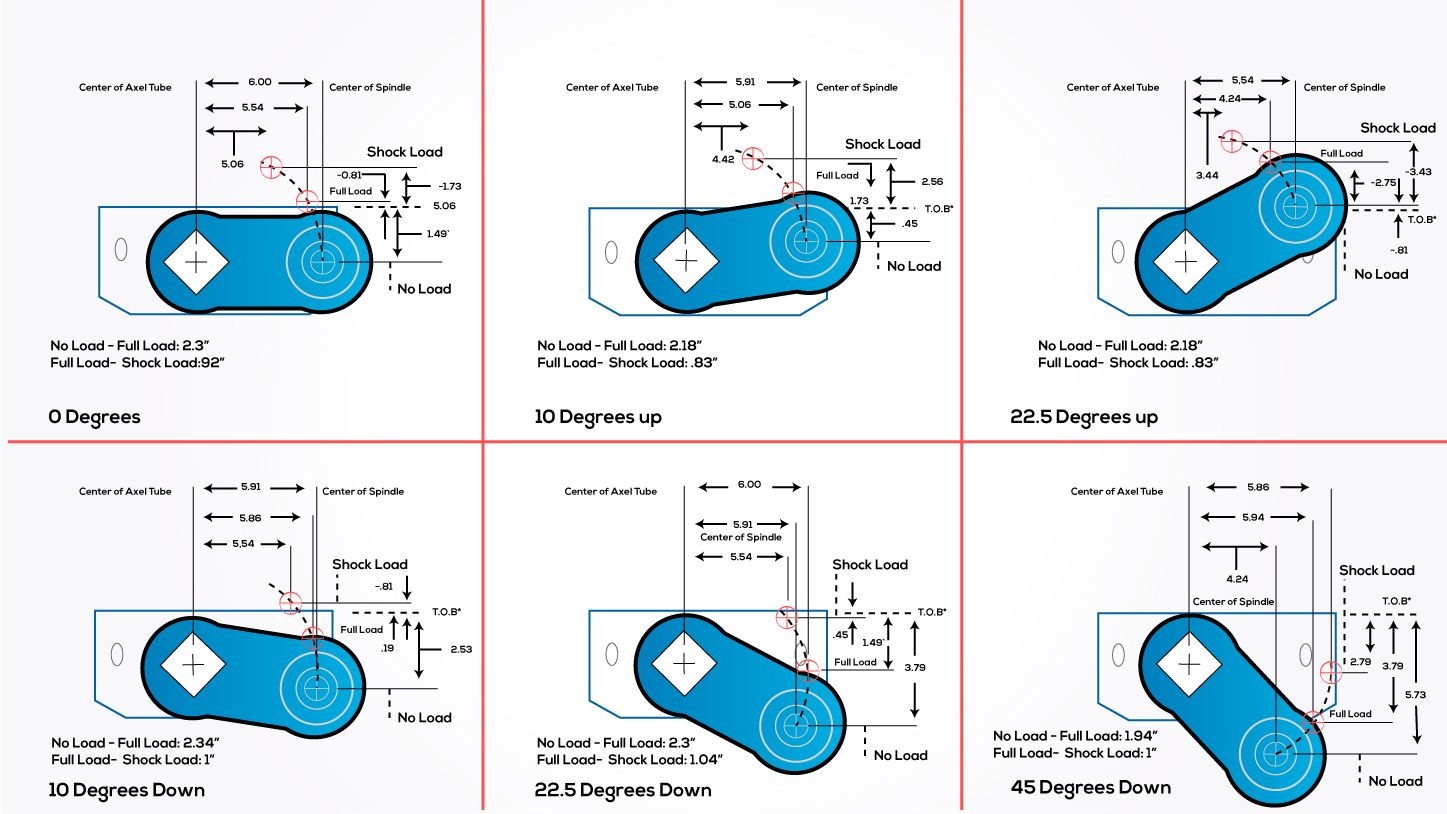

Axle Arm Angles
Hanger Kit Diagrams

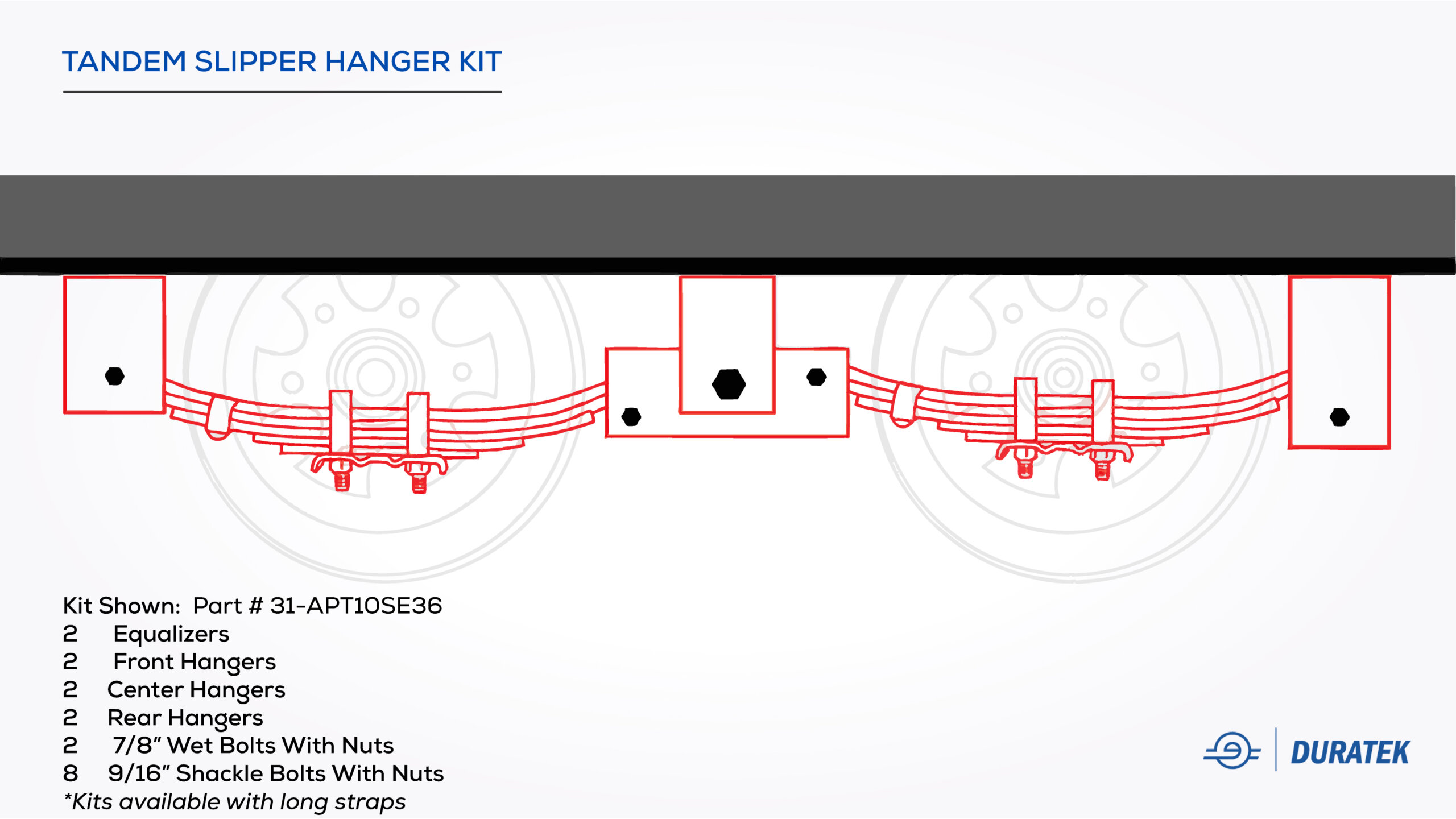

Tandem Slipper Hanger Kit

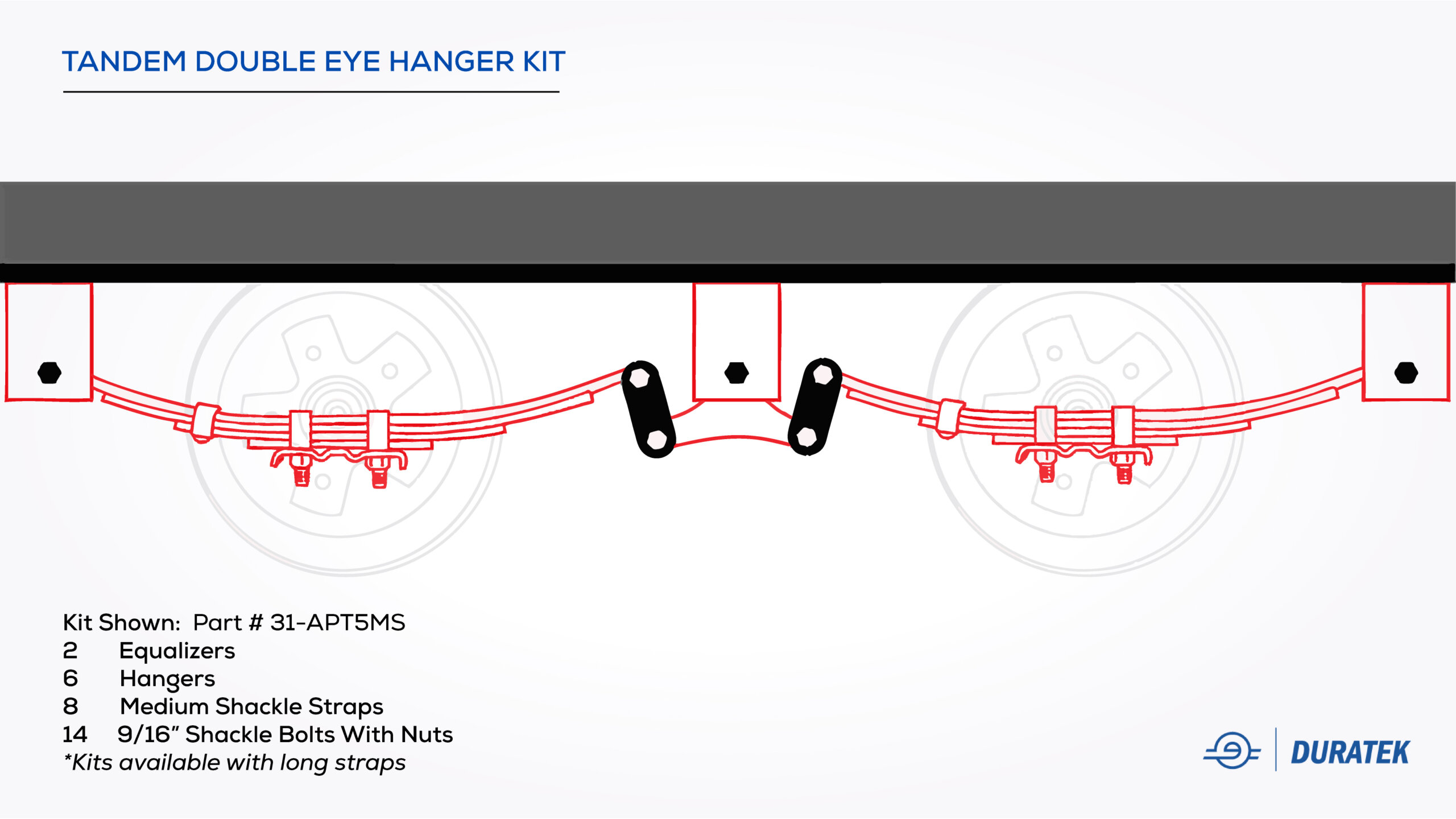

Tandem Double Eye Hanger Kit

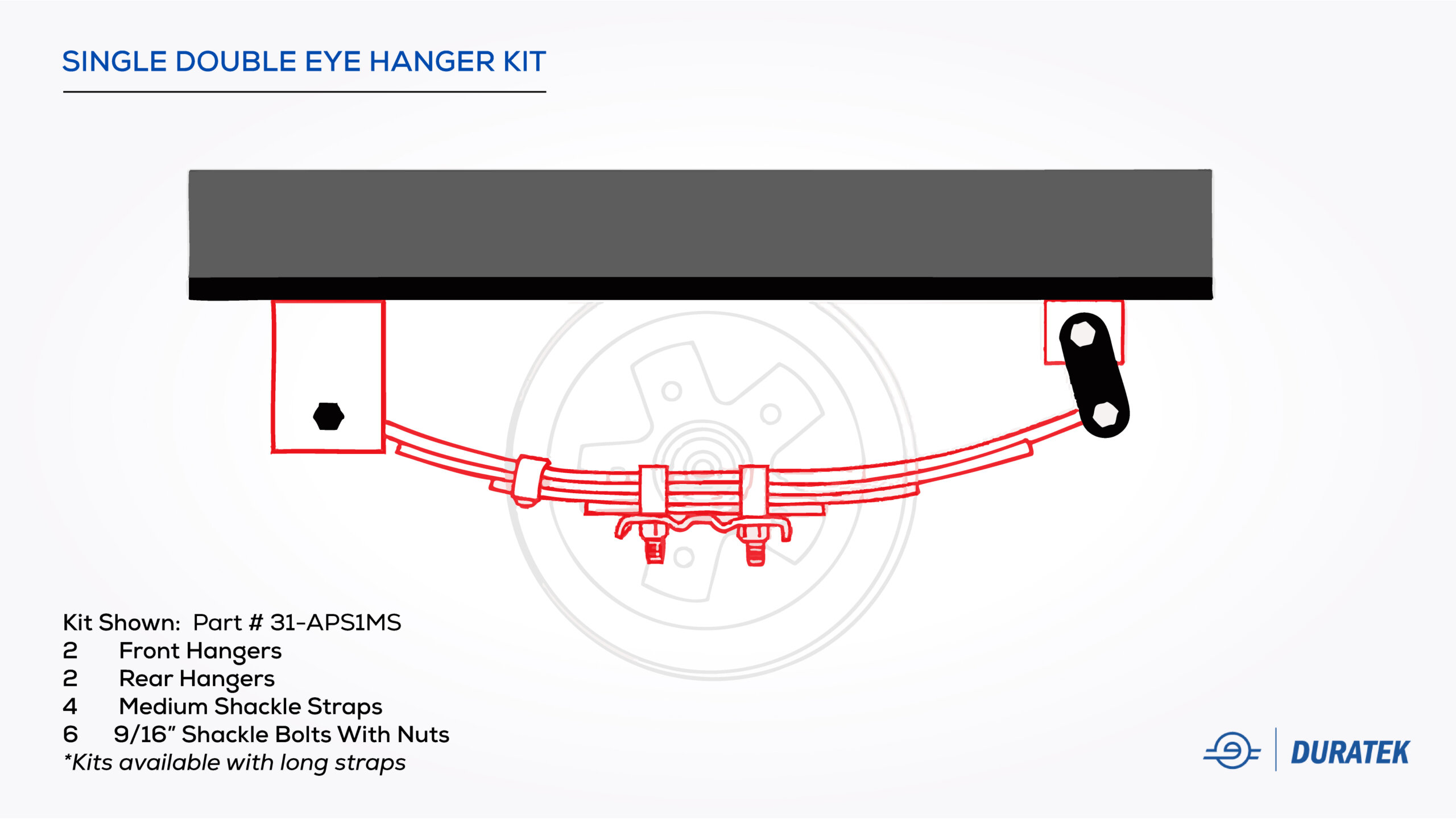

Single Double Eye Hanger Kit
Brake Diagrams
12" Electric Trailer Brake Diagram
12" Electric Trailer Brake Dimensions

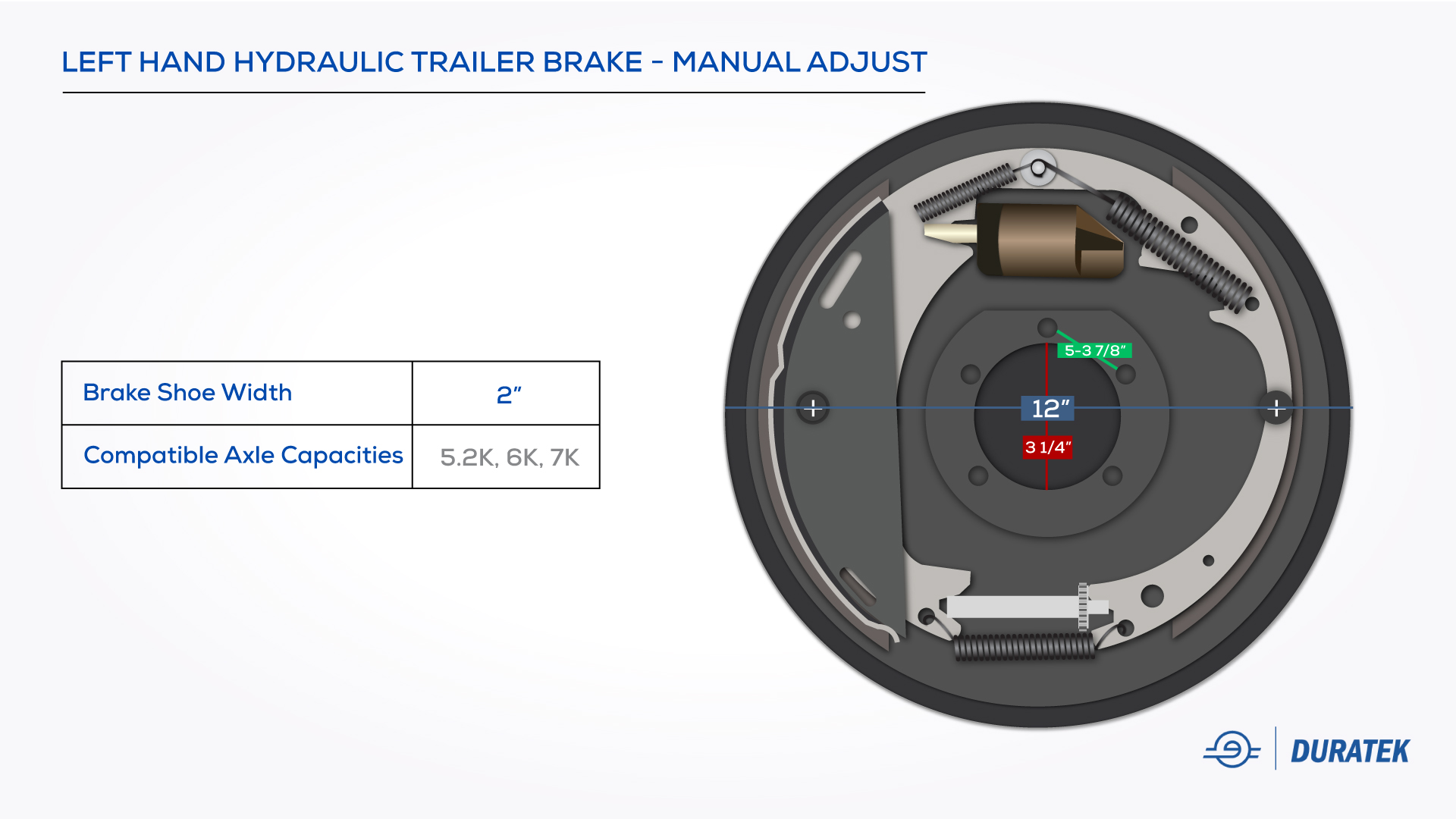

12" Hydraulic Trailer Brake Diagram
12" Hydraulic Trailer Brake Dimensions
10" Electric Trailer Brake Diagram
10" Electric Trailer Brake Dimensions
10" Hydraulic Trailer Brake Diagram
10" Hydraulic Trailer Brake Dimensions
Bolt Diagrams
Trailer Hub Bolt Pattern Template

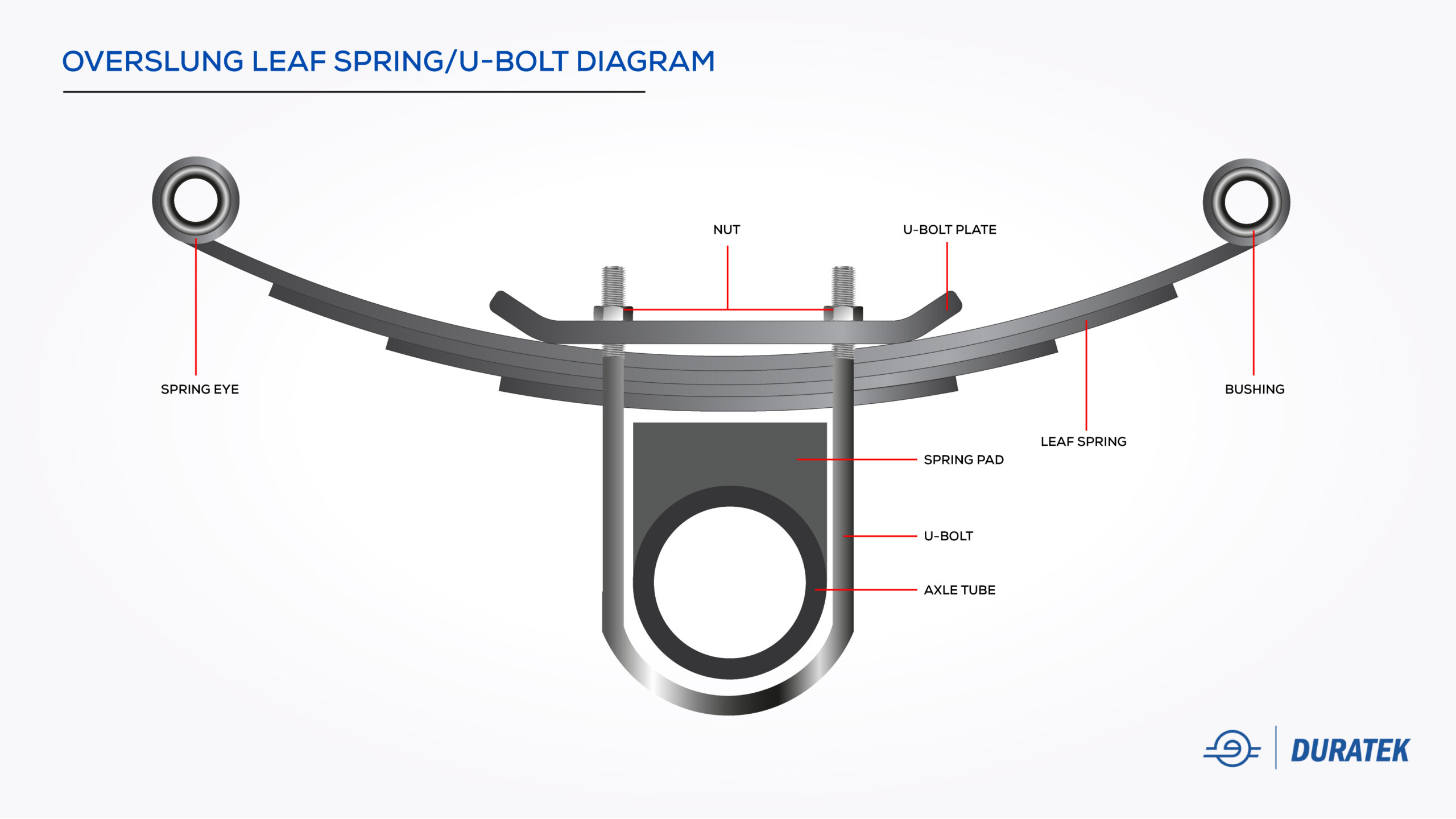

Overslung Leaf Spring/U-bolt Diagram

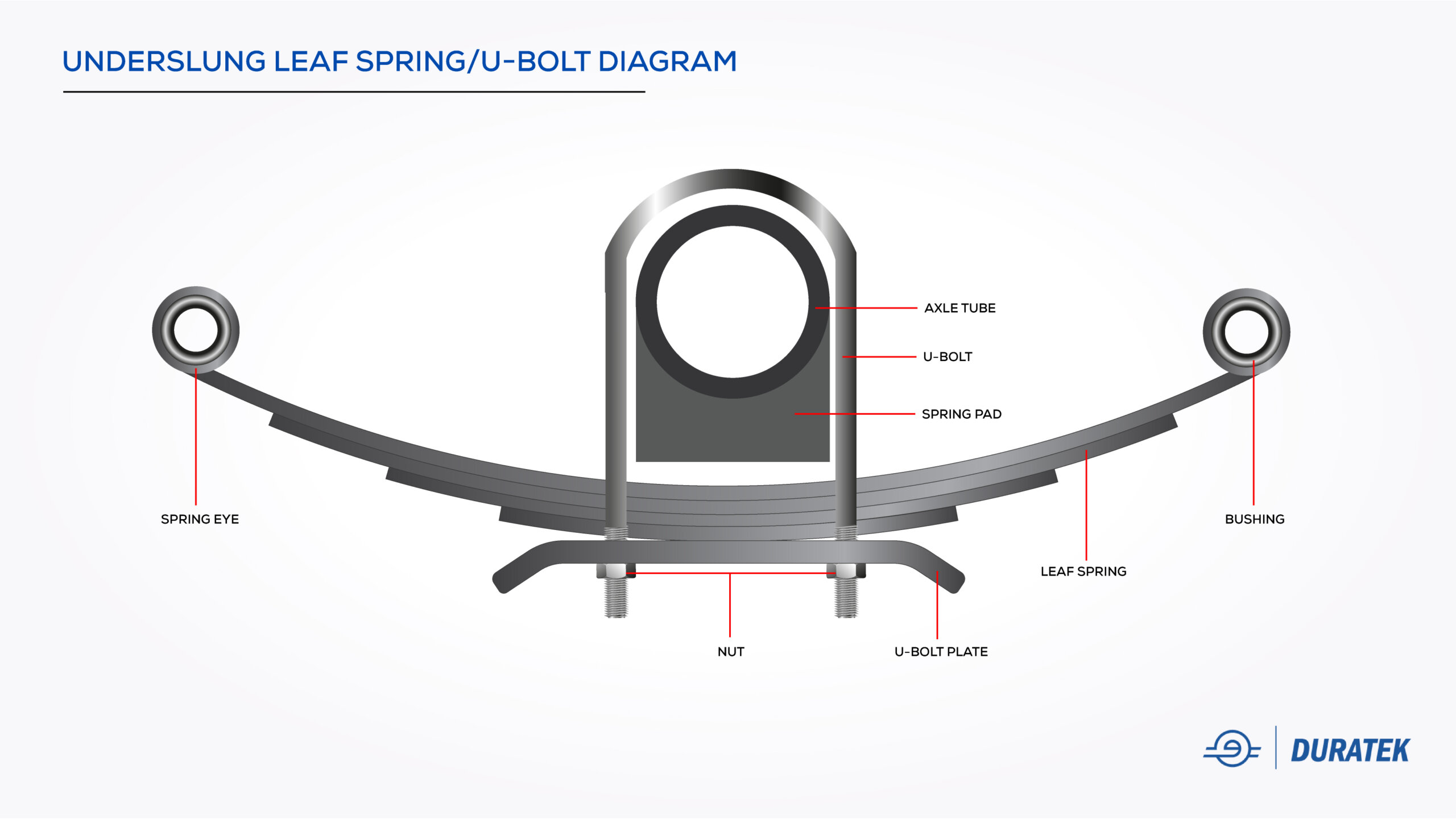

Underslung Leaf Spring/U-bolt Diagram
Spring Diagrams

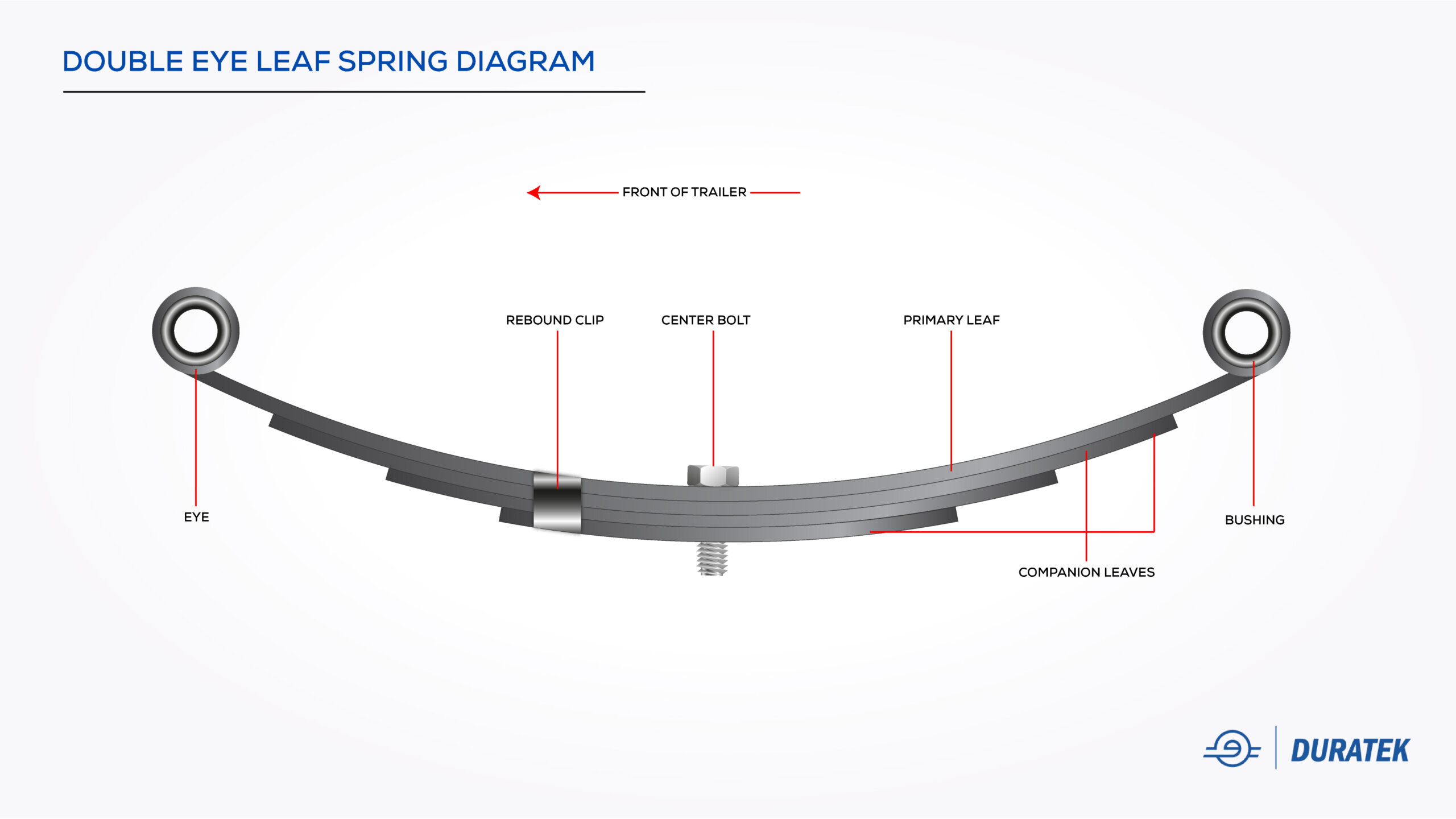

Double Eye Leaf Spring Diagram

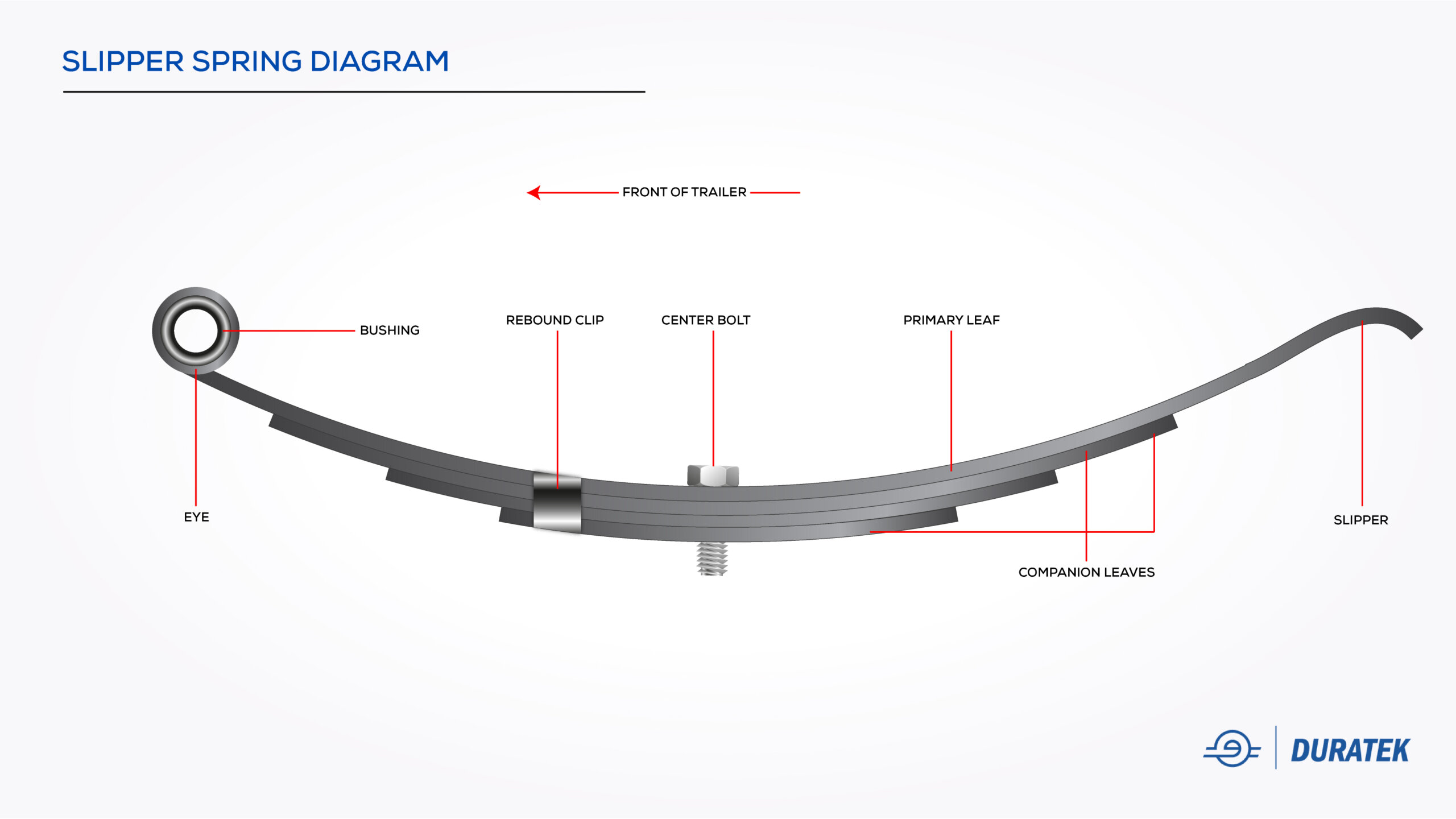

Slipper Spring Diagram

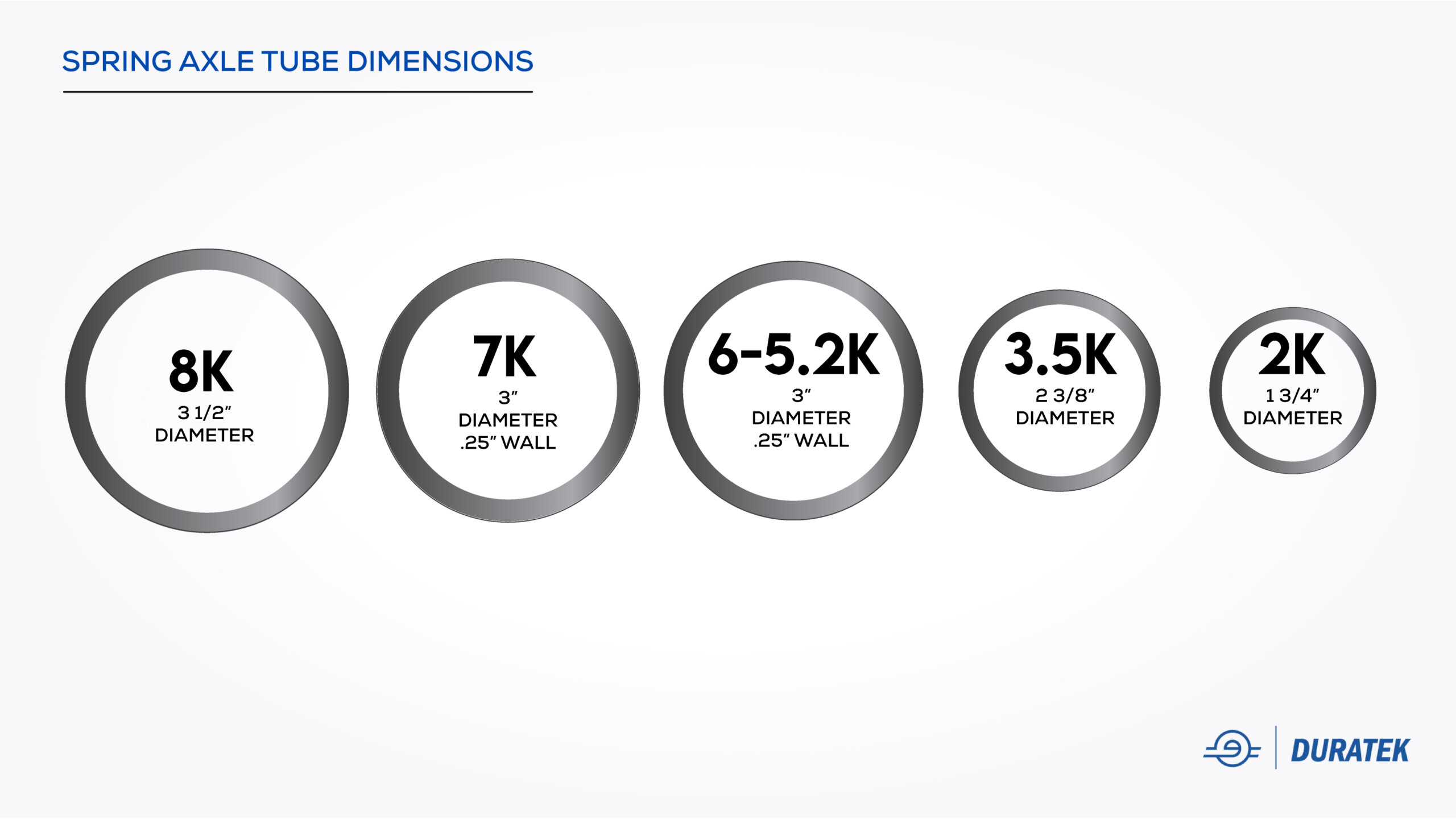

Spring Axle Tube Dimensions
Trailing Arm Diagrams
Trailing Arm Axles

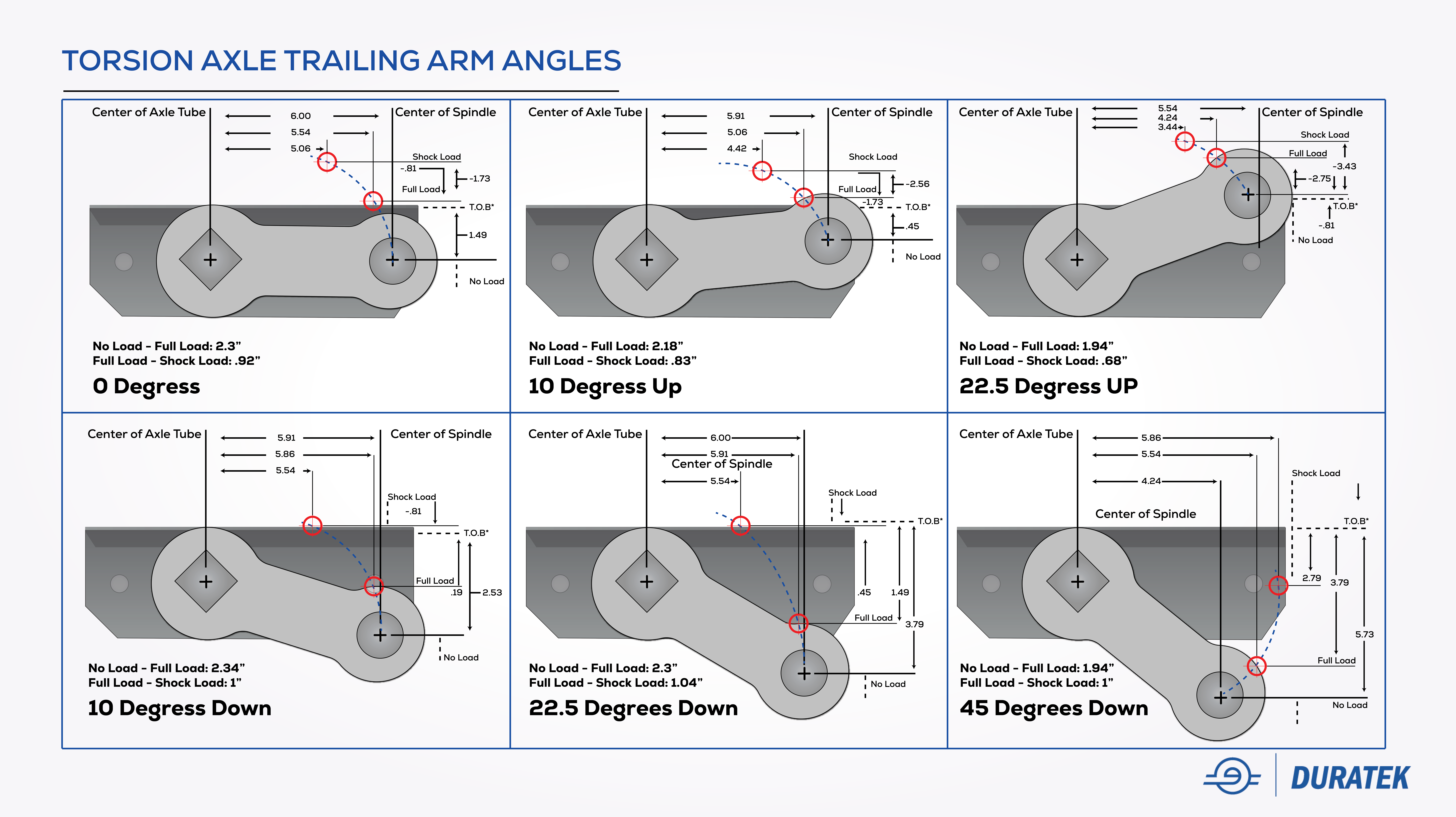

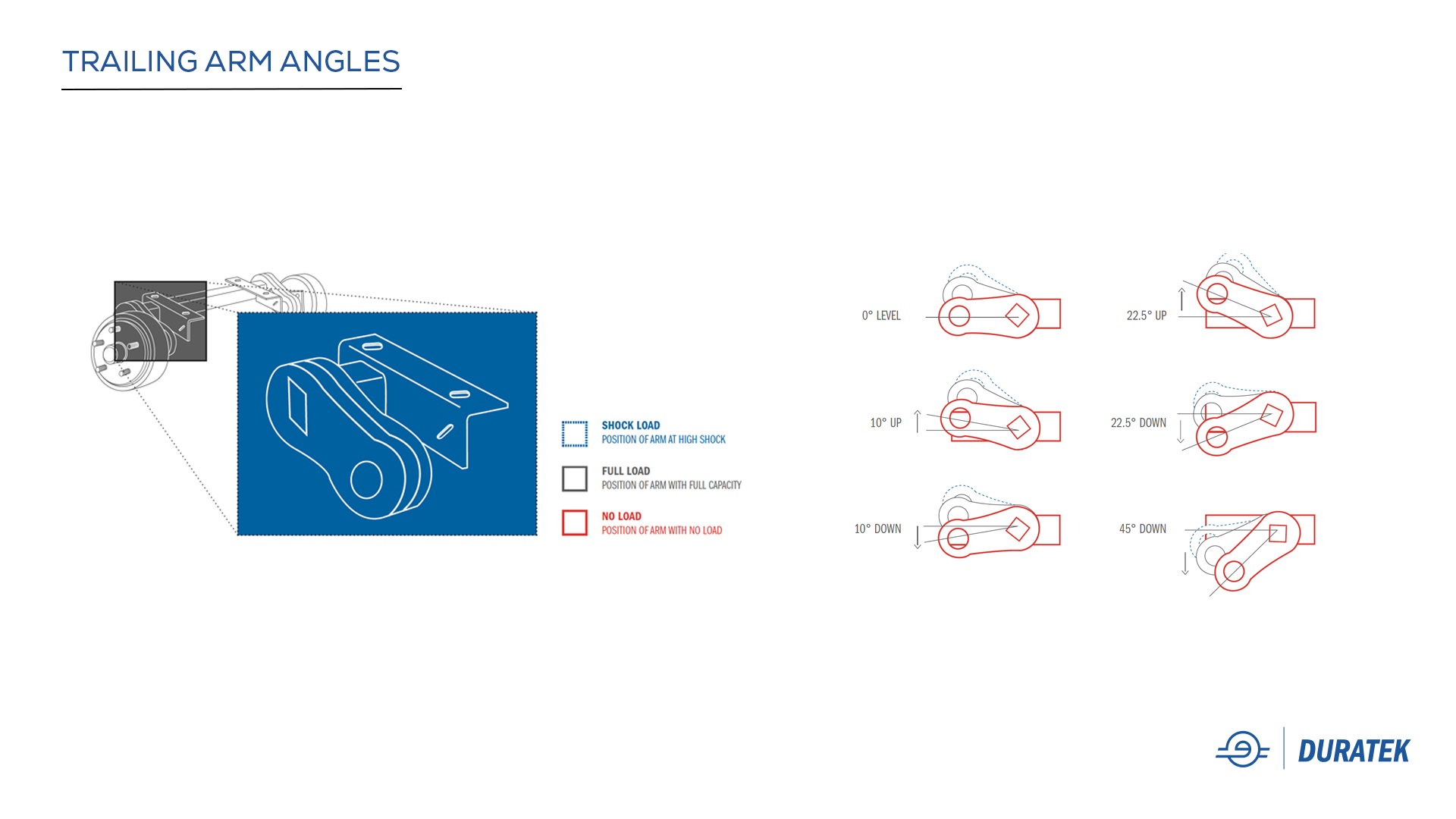

Torsion Axle Trailing Arm Angles
Wiring Diagrams

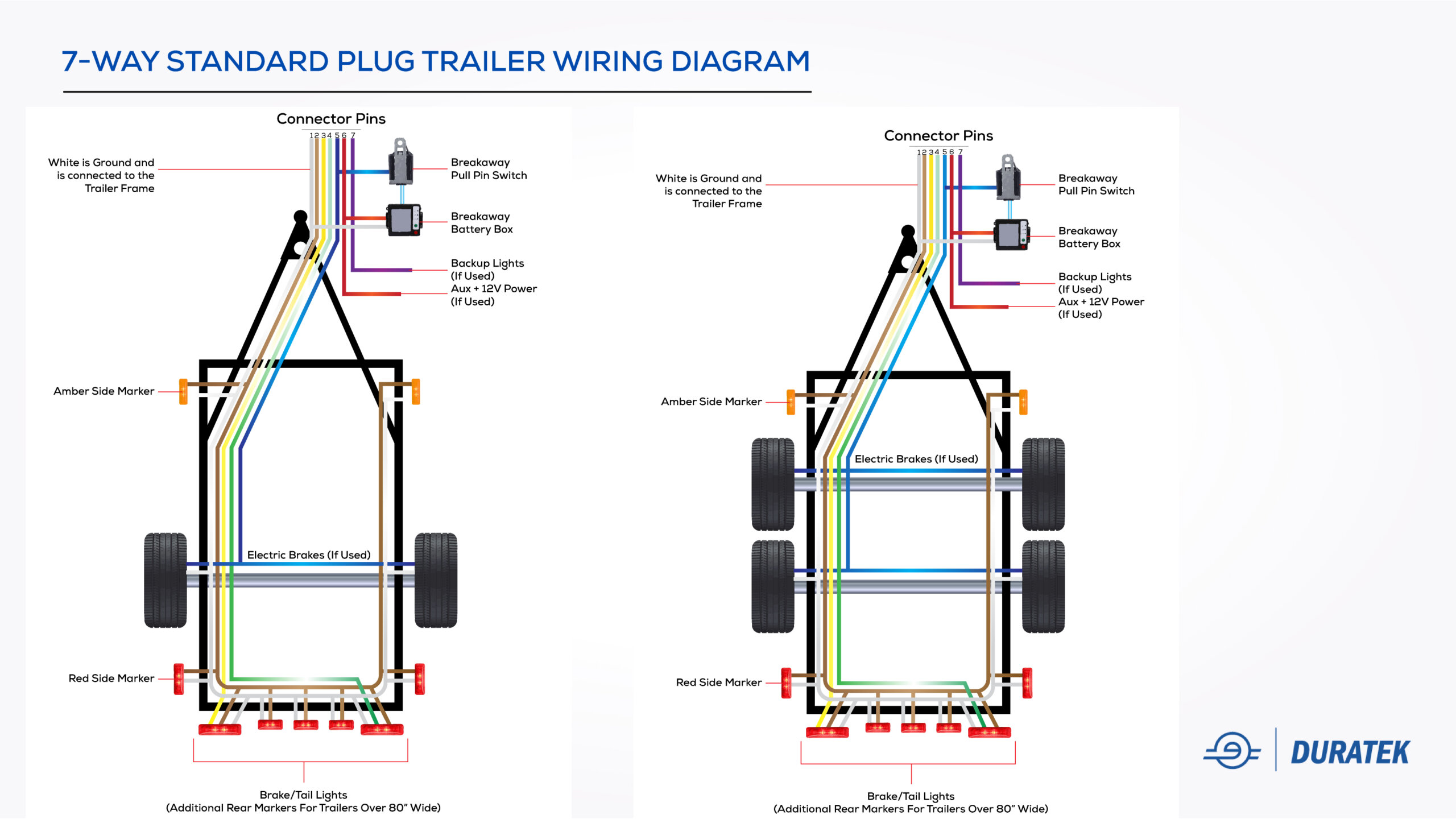

7-way standard plug trailer wiring diagram

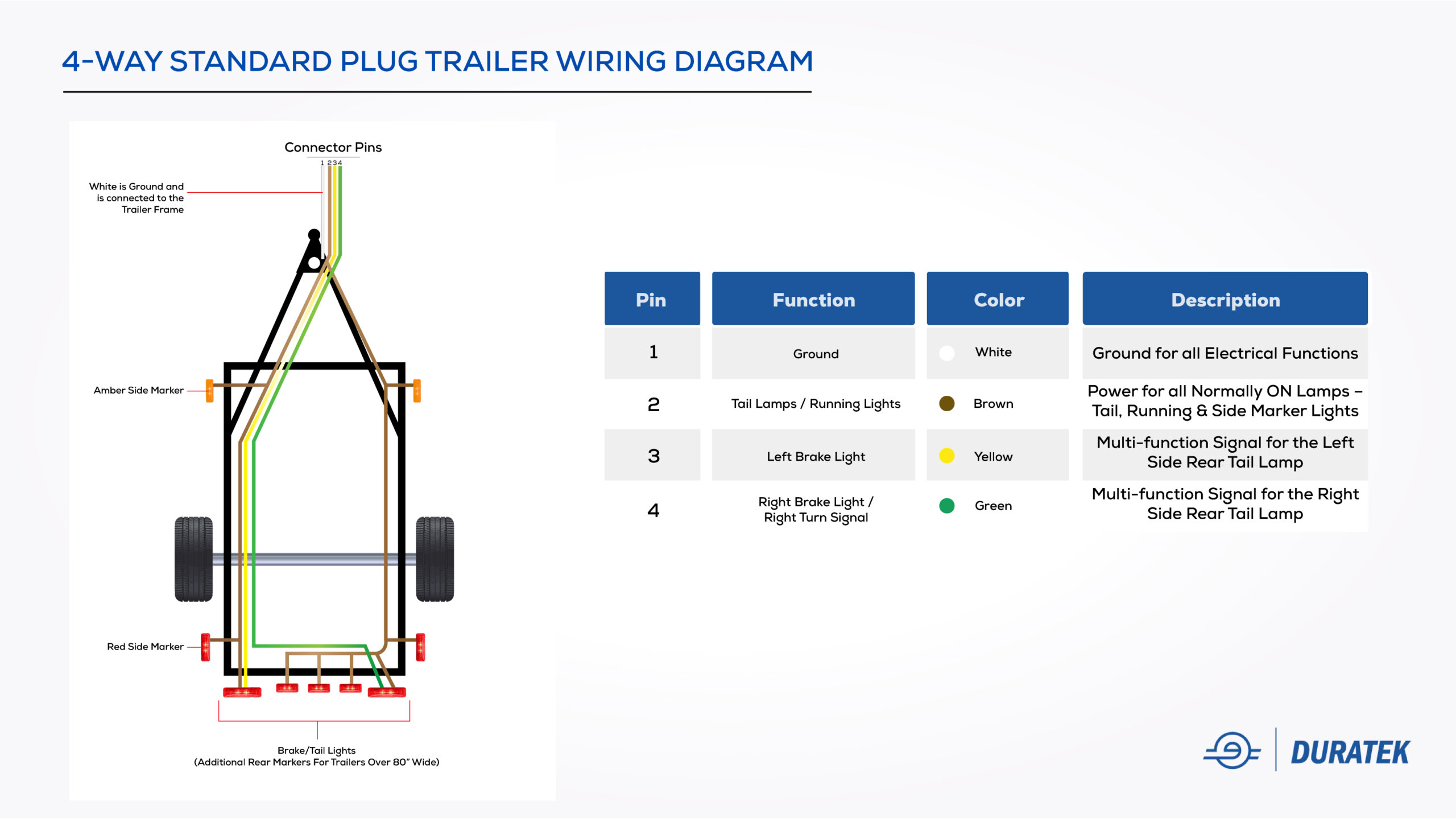

4-way standard plug trailer wiring diagram
4-way standard plug trailer wiring diagram
7-Way standard plug wiring diagram

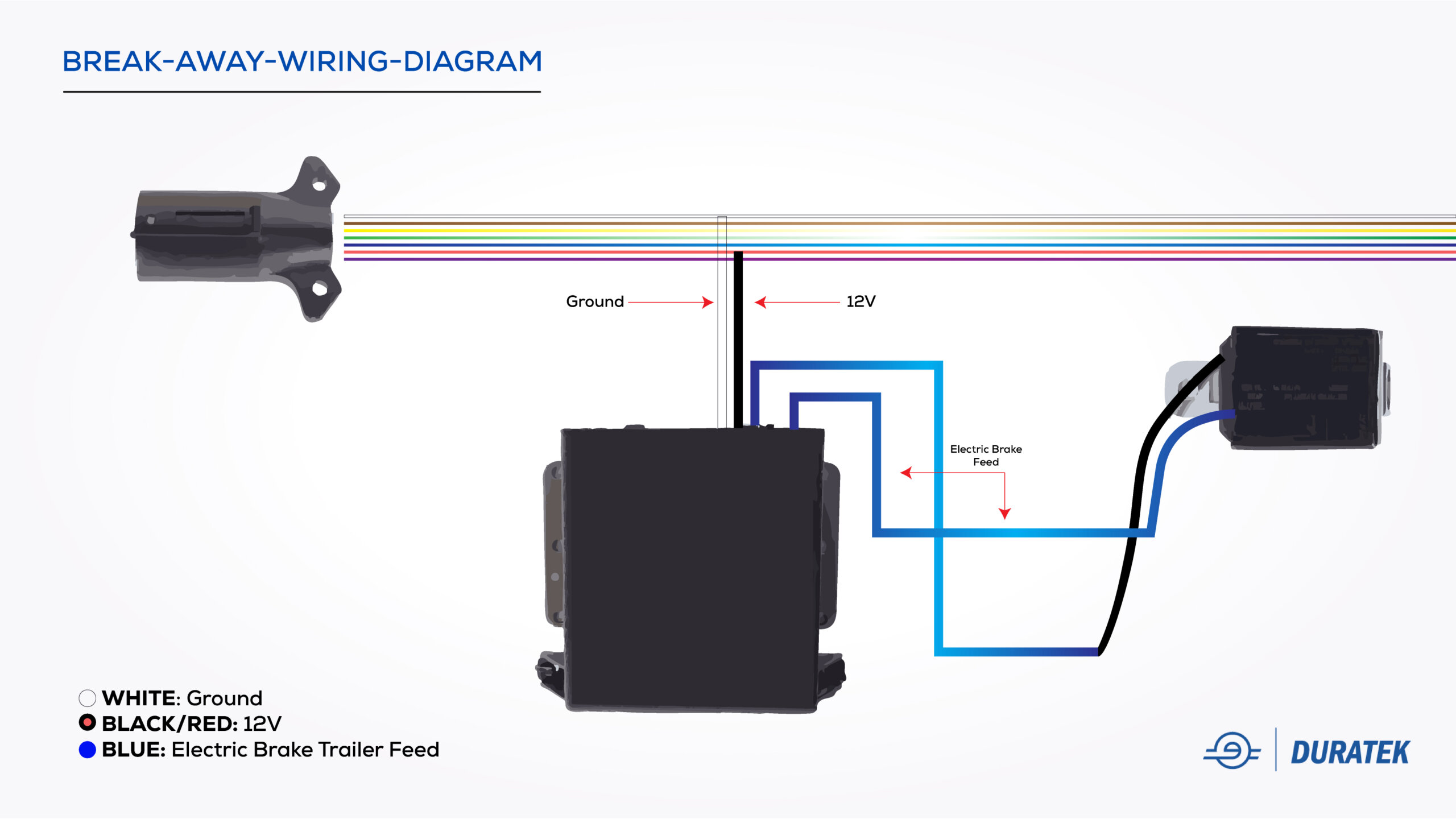

Break-Away Wiring Diagram

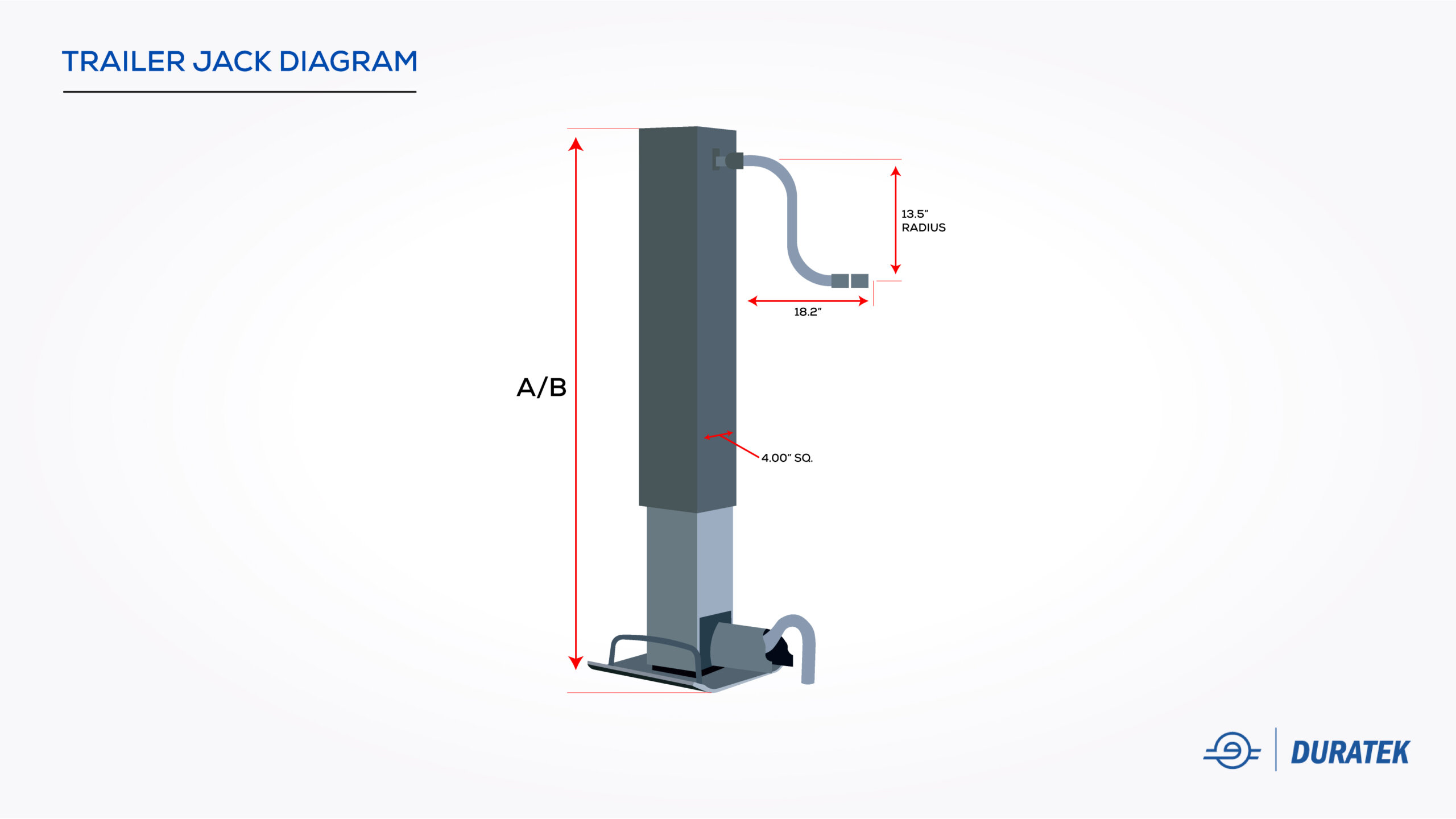

Other Diagrams

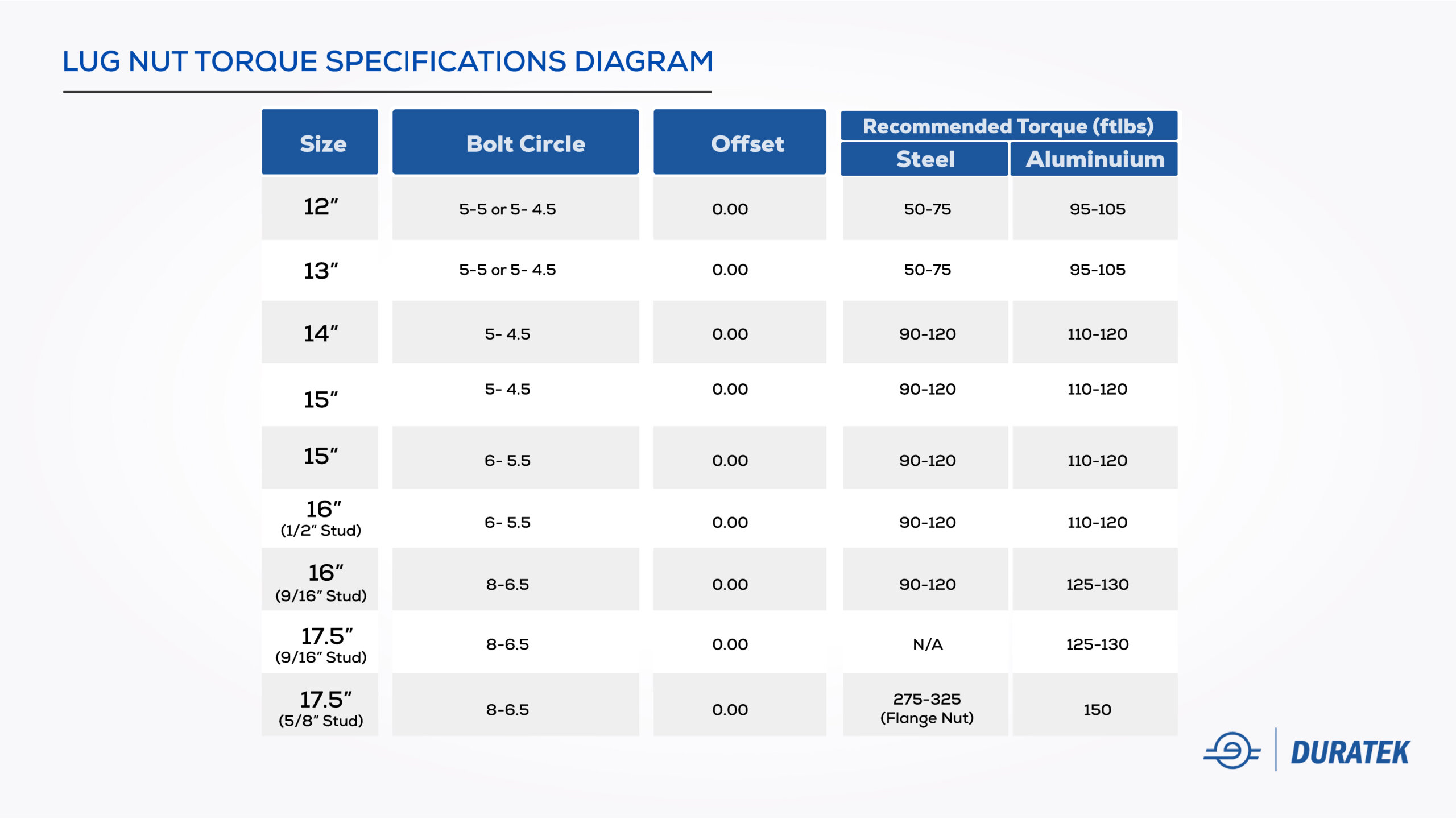

Lug Nut Torque Specifications Diagram
Tire Wear Diagnostic chart
