Straight Spring Axles

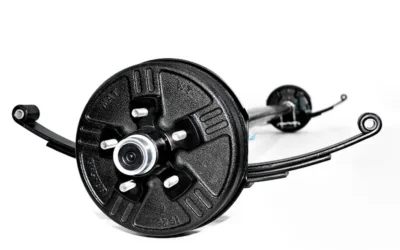

8,000 pound straight leaf spring axle

7,000 pound straight leaf spring axle Specifications Custom made to specific hub face and spring center measurements / 3" round steel tube / Hot forged flange straight spindles / #42 spindle uses 25580 inner bearing and 14125A outer bearing for 8-6.5 bolt circle idler...

6,000 pound straight leaf spring axle Specifications Custom made to your hub face and spring center measurements / 3" round steel tube / Hot forged flange straight spindles / #42 spindle uses 25580 inner bearing and 15123 outer bearing for 6-5.5 bolt circle hubs and...

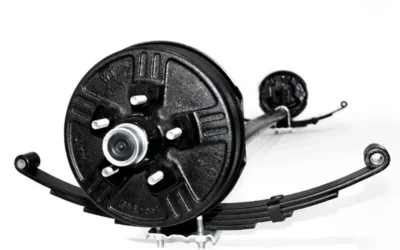

5,200 pound straight leaf spring axle Specifications Custom made to your hub face and spring center measurements / 3" round steel tube / Hot forged flange straight spindles / #42 spindle uses 25580 inner bearing and 15123 outer bearing for 6-5.5 bolt circle hubs and...

3,500 pound straight leaf spring axle Specifications Custom made to your hub face and spring center measurements / 2-3/8" round steel tube /Available in 3" tube / Hot forged flange straight spindles / #84 spindle uses L68149 inner bearing and L446649 outer bearing for...

2,000 pound straight leaf spring axle Specifications Custom made to your hub face and spring center measurements / 2" round steel tube / Hot forged straight spindles / BT16 spindle uses L44649 inner and outer bearing for 4-4 or 5-4.5 bolt circle hubs and brake drums /...
